PrimePhase
RF Terminator, 5W, DC-6GHz, QMA(male)
RF Terminator, 5W, DC-6GHz, QMA(male)
Couldn't load pickup availability

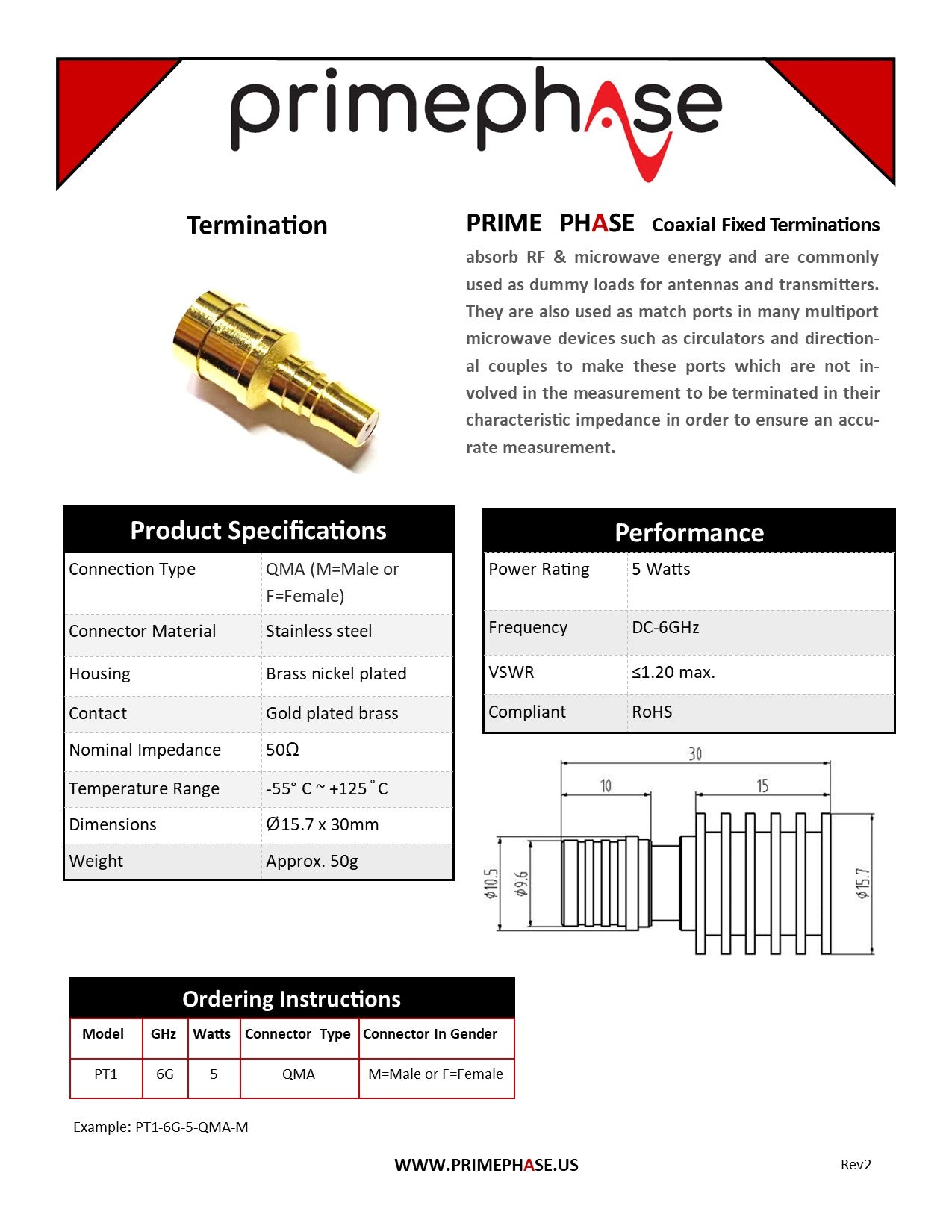

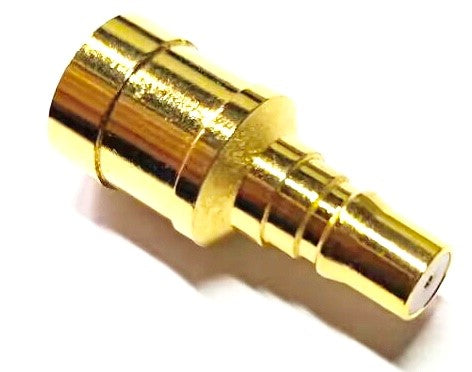

RF Terminator, 5 Watts, QMA male. DC-6GHz
SKU: PT1-6G-5W-QMA-M
Connector: QMA male
Contact: Gold plated brass
Housing: Aluminum blackening
Connector Material: Passivated Stainless steel
Impedance: 50Ohm
Freq: DC-6GHz
VSWR <1.20 max (0-6GHz)
Power Rating: 5 Watts @25 C
Temperature Range: -55° C ~ +125˚C
Compliant: RoHS
Dimensions: Ø15.87 x 30mm
Weight: ~50g
Applications: Telecommunications, RF Test labs,
MOQ: 100pcs
Materials
Materials
Connectors are passivated stainless steel.
Aluminum Heatsink
Contacts are gold plated brass
RoHS and REACH compliant
Shipping & Returns
Shipping & Returns
14 day no questions asked return policy.
Free shipping in US for orders over $50
Dimensions and weight
Dimensions and weight
Ø15.8 x 28mm
~15 g
