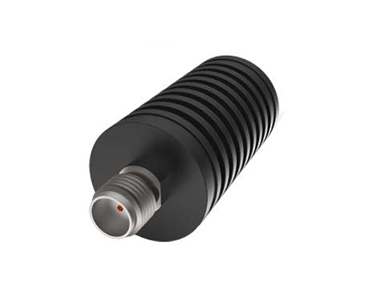

RF Terminator, 10W, DC-6GHz, SMA(male)
RF Terminator, 10W, DC-6GHz, SMA(male)
Couldn't load pickup availability

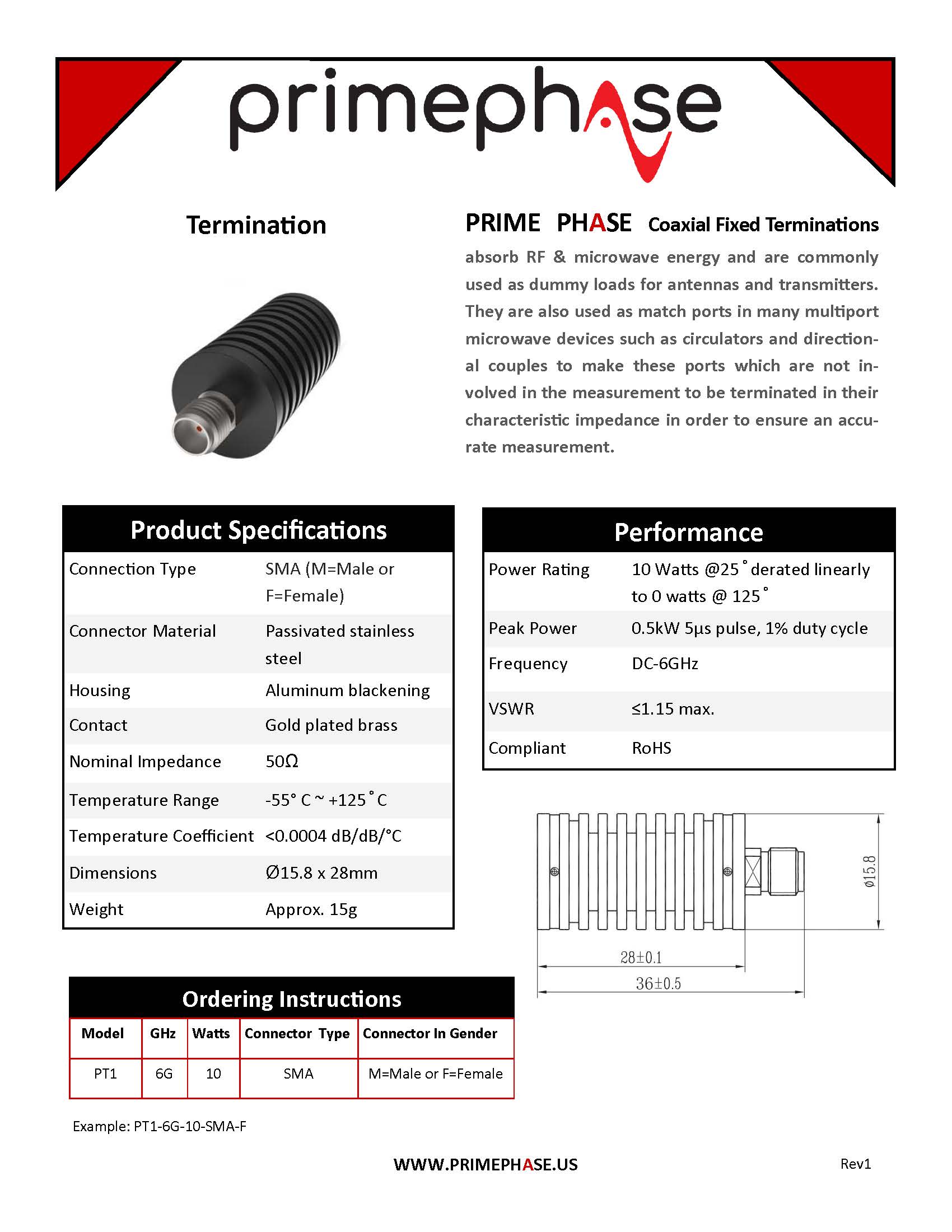

RF Terminator, 10 Watts, SMA male. DC-6GHz
SKU: PT1-6G-10W-SMA-M
Connector: SMA Male
Contact: Gold plated brass
Housing: Aluminum blackening
Connector Material: Passivated Stainless steel
Impedance: 50Ohm
Freq: DC-6GHz
VSWR <1.15 max (0-6GHz)
Power Rating: 10 Watts @25C
Peak Power: 0.5kW 5μs pulse, 1% duty cycle
Temperature Range: -55° C ~ +125˚C
Compliant: RoHS
Dimensions: Ø15.8 x 28mm
Weight: ~15g
Applications: Telecommunications, RF Test labs,
Materials
Materials
Connectors are passivated stainless steel.
Aluminum Heatsink
Contacts are gold plated brass
RoHS and REACH compliant
Shipping & Returns
Shipping & Returns
14 day no questions asked return policy.
Free shipping in US for orders over $50
Dimensions and weight
Dimensions and weight
Ø15.8 x 28mm
~15 g
