RF Attenuator 20dB, 50W, DC-6GHz, N(Male to Female)- Bi-Directional
RF Attenuator 20dB, 50W, DC-6GHz, N(Male to Female)- Bi-Directional
Couldn't load pickup availability

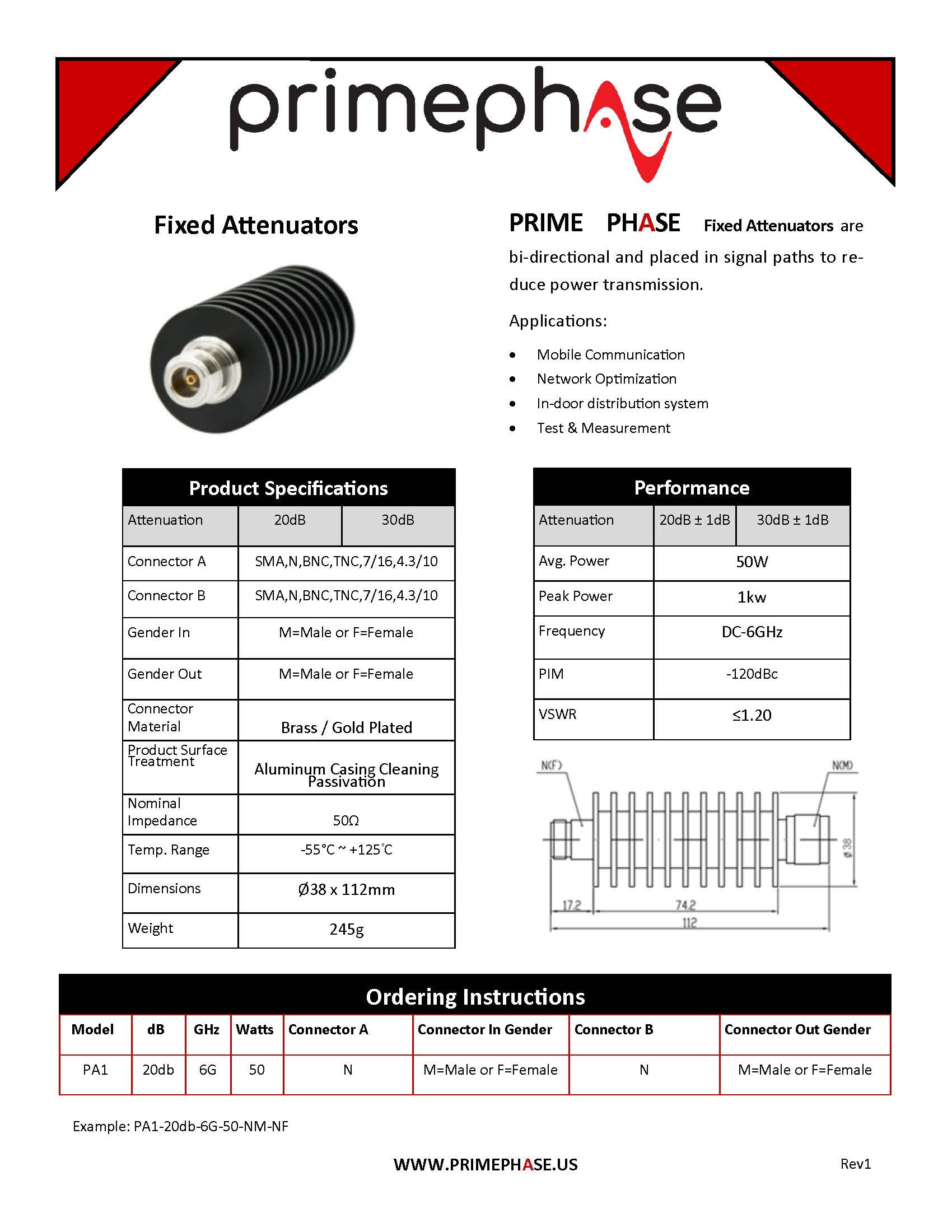

RF Attenuator, 20dB, 50W N(Male) to N(Female), Bi-Directional
SKU: PA1-20db-6G-50-NM-NF-L
Attenuation: 20dB
Average Power: 50 Watts
Connection Type: Brass Gold Plated
Body Material and Plating: Black Anodized Aluminum Heatsink
Nominal Impedance: 50 Ohm
Freq: DC-6GHz
VSWR <1.25 (DC-6GHz)
PIM <-120dBc
Temperature Range: -55° C ~ +125˚C
Dimensions: Ø38 x 112mm
Weight: 245g
Applications: Telecommunications, RF Test labs,
Materials
Materials
Connectors are passivated stainless steel.
Aluminum Heatsink
Contacts are gold plated brass
RoHS and REACH compliant
Shipping & Returns
Shipping & Returns
14 day no questions asked return policy.
Free shipping in US for orders over $50
Dimensions and weight
Dimensions and weight
Ø15.8 x 28mm
~15 g
