PrimePhase

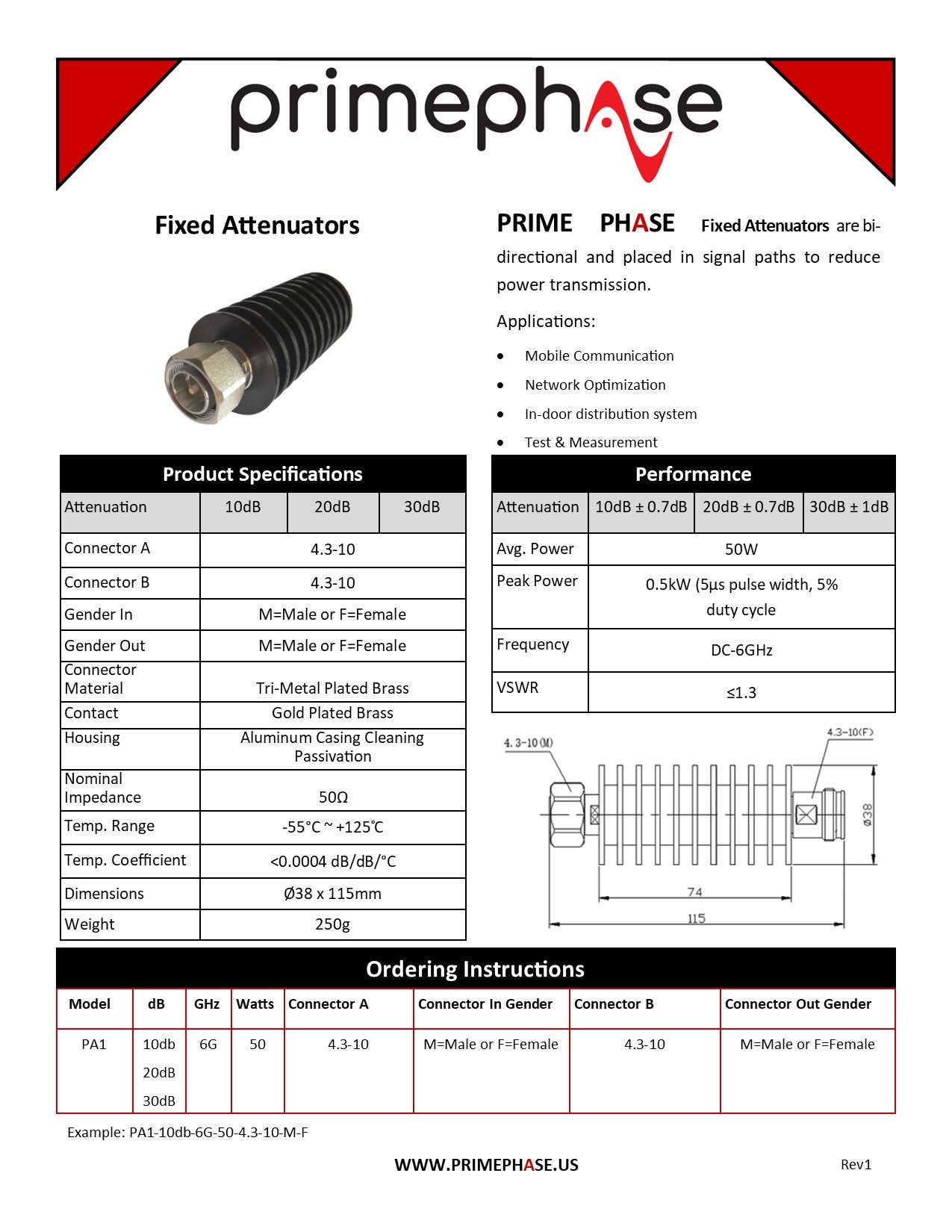

RF Attenuator 10dB, 50W, DC-6GHz, 4.3-10(Male to Female), Bi-Directional
RF Attenuator 10dB, 50W, DC-6GHz, 4.3-10(Male to Female), Bi-Directional
Couldn't load pickup availability
RF Attenuator, 10dB, 50W 4.3-10(Male) to 4.3-10(Female), Bi-Directional
SKU: PA1-10db-6G-50-4.3-10-M-F
Attenuation: 10dB
Average Power: 50 Watts
Connection Type: Brass Gold Plated
Body Material and Plating: Black Anodized Aluminum Heatsink
Nominal Impedance: 50 Ohm
Freq: DC-6GHz
VSWR <1.3 (DC-6GHz)
Temperature Range: -55° C ~ +125˚C
Dimensions: Ø38 x 115mm
Weight: 250g
Applications: Telecommunications, RF Test labs, DAS installation
Comparable to FMAT7452-10
Materials
Materials
Connectors are passivated stainless steel.
Aluminum Heatsink
Contacts are gold plated brass
RoHS and REACH compliant
Shipping & Returns
Shipping & Returns
14 day no questions asked return policy.
Free shipping in US for orders over $50
Dimensions and weight
Dimensions and weight
Ø15.8 x 28mm
~15 g
