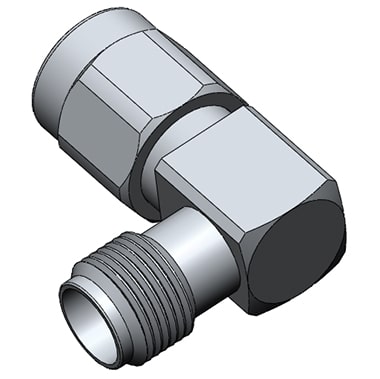

Precision RF Adapter Right Angle SMA (Male) to SMA (Female)
Precision RF Adapter Right Angle SMA (Male) to SMA (Female)
Couldn't load pickup availability

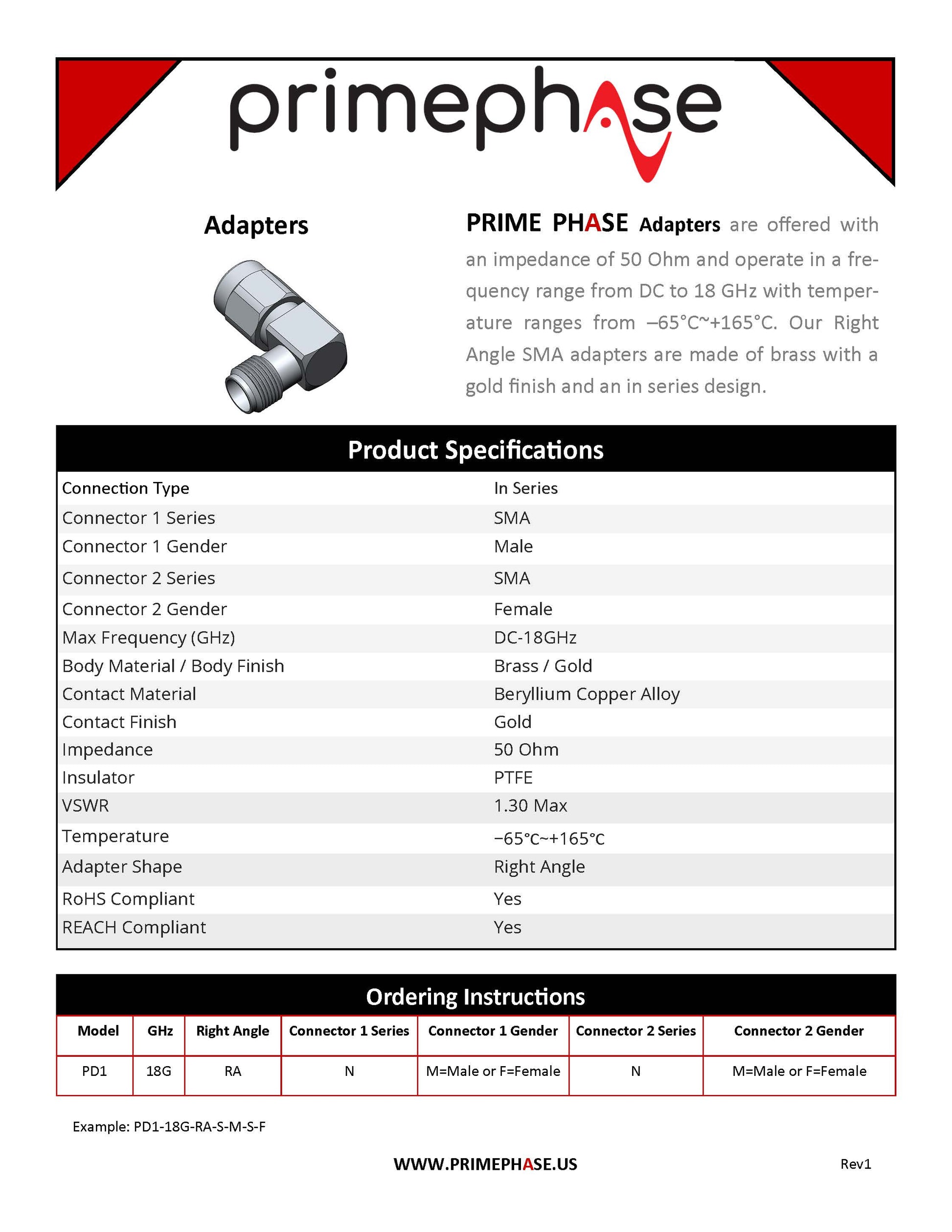

Precision RF Adapter Right Angle SMA (Male) to SMA (Female)
Connection Type - In Series
Connector A SMA
Connector A Gender Male
Connector B SMA
Connector B Gender Female
Max Frequency (GHz) DC-18 GHz
Body Material / Body Finish - Brass / Gold
Contact Material - Beryllium Copper Alloy
Contact Finish - Gold
Impedance - 50 Ohm
Insulator - PTFE
VSWR 1.30
Temperature range −65°C~+165°C
Adapter Shape - Right Angle
Applications: Telecommunications, RF Test and Measurement,
RoHS Compliant
REACH Compliant
Applicable Standards: Interface according to MIL-STD-348
Comparable to PE9068
Materials
Materials
Connectors are passivated stainless steel.
Aluminum Heatsink
Contacts are gold plated brass
RoHS and REACH compliant
Shipping & Returns
Shipping & Returns
14 day no questions asked return policy.
Free shipping in US for orders over $50
Dimensions and weight
Dimensions and weight
Ø15.8 x 28mm
~15 g
