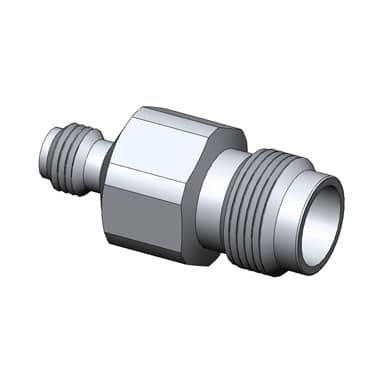

Precision RF Adapter 1.0mm (Female) to 1.85mm(Female)
Precision RF Adapter 1.0mm (Female) to 1.85mm(Female)
Couldn't load pickup availability
Precision RF Adapter 1.0mm (Female) to 1.85mm(Female)
Connection Type - Between Series
Connector A 1.0mm
Connector A Gender Female
Connector B 1.85mm
Connector B Gender Female
Max Frequency (GHz) DC-67 GHz
Body Material / Body Finish - Stainless Steel / Passivated
Contact Material - Beryllium Copper Alloy
Contact Finish - Gold
Impedance - 50 Ohm
Insulator - PEI
VSWR 1.35 Max
Insertion Loss: 0.5dB Max
Temperature range −55°C~+125°C
Adapter Shape - Straight
Applications: Telecommunications, RF Test and Measurement,
RoHS Compliant
REACH Compliant
Materials
Materials
Connectors are passivated stainless steel.
Aluminum Heatsink
Contacts are gold plated brass
RoHS and REACH compliant
Shipping & Returns
Shipping & Returns
14 day no questions asked return policy.
Free shipping in US for orders over $50
Dimensions and weight
Dimensions and weight
Ø15.8 x 28mm
~15 g
