DC Block SMA Male-Female, 0.01-6GHz, 50V
DC Block SMA Male-Female, 0.01-6GHz, 50V
Couldn't load pickup availability

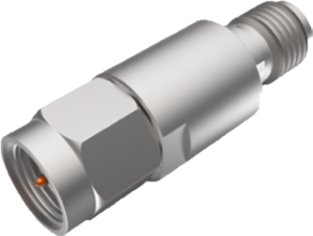

DC Block SMA Male-Female, 0.01-6GHz, 50V, Bi-Directional
Brand: PrimePhase Microwave

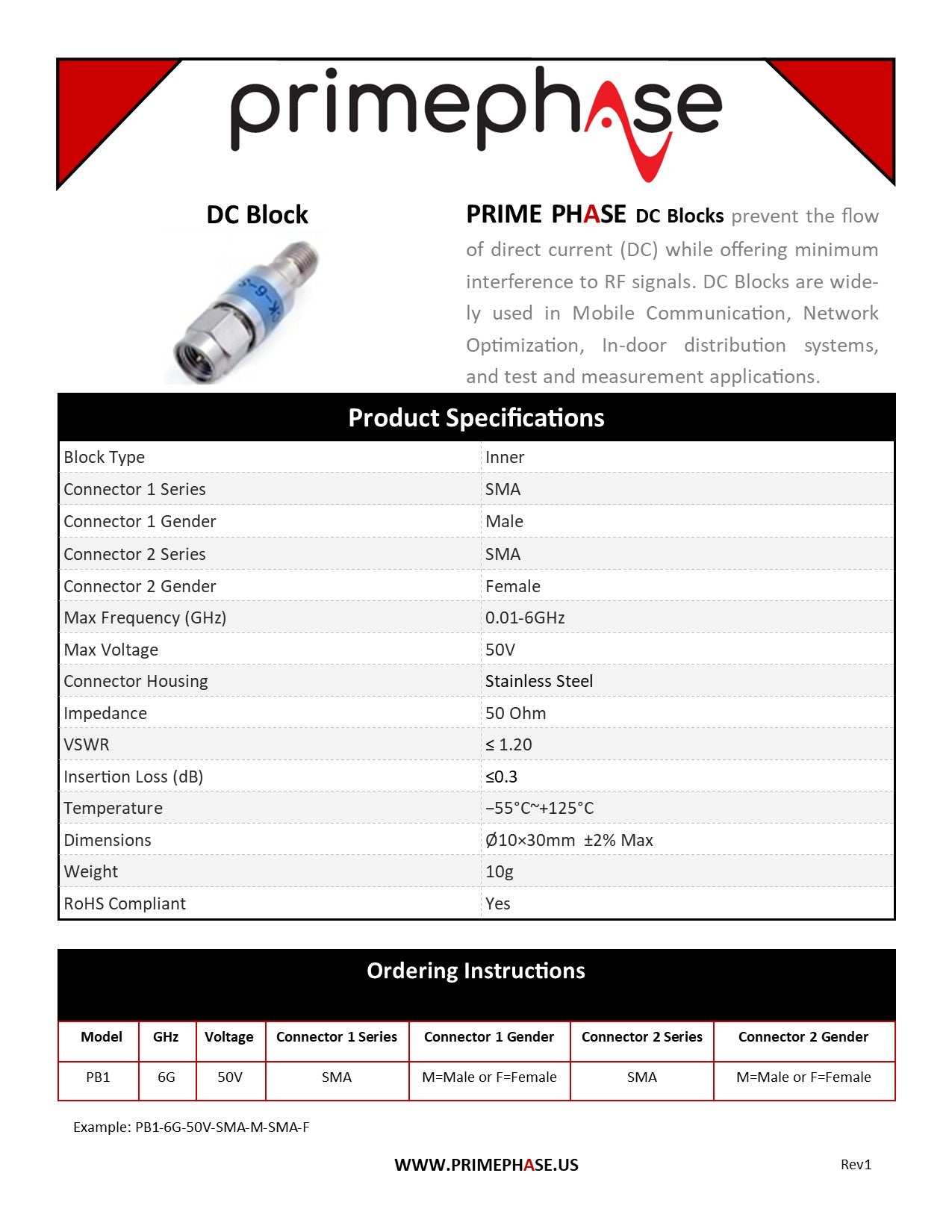

SKU: PB1-6G-50V-SMA-M-SMA-F
Block Type Inner
Connector A: SMA Male
Connector B: SMA Female
Frequency (GHz) 0.01-6GHz
Max Voltage 50V
Connector Housing Stainless Steel
Impedance 50 Ohm
VSWR ≤ 1.20
Insertion Loss (dB) ≤0.3dB
Temperature −55°C~+125°C
Dimensions Ø10×30mm ±2% Max
Weight 10g
RoHS Compliant Yes
Applications: Telecommunications, RF Test labs,
Materials
Materials
Connectors are passivated stainless steel.
Aluminum Heatsink
Contacts are gold plated brass
RoHS and REACH compliant
Shipping & Returns
Shipping & Returns
14 day no questions asked return policy.
Free shipping in US for orders over $50
Dimensions and weight
Dimensions and weight
Ø15.8 x 28mm
~15 g
