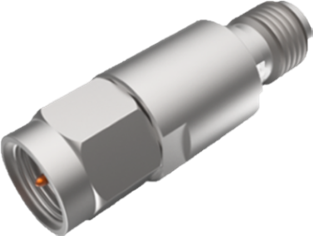

DC Block SMA Male-Female, 0.13-26GHz, 50V
DC Block SMA Male-Female, 0.13-26GHz, 50V
Couldn't load pickup availability
DC Block SMA Female-Male, 0.13-26GHz, 50V, Bi-Directional

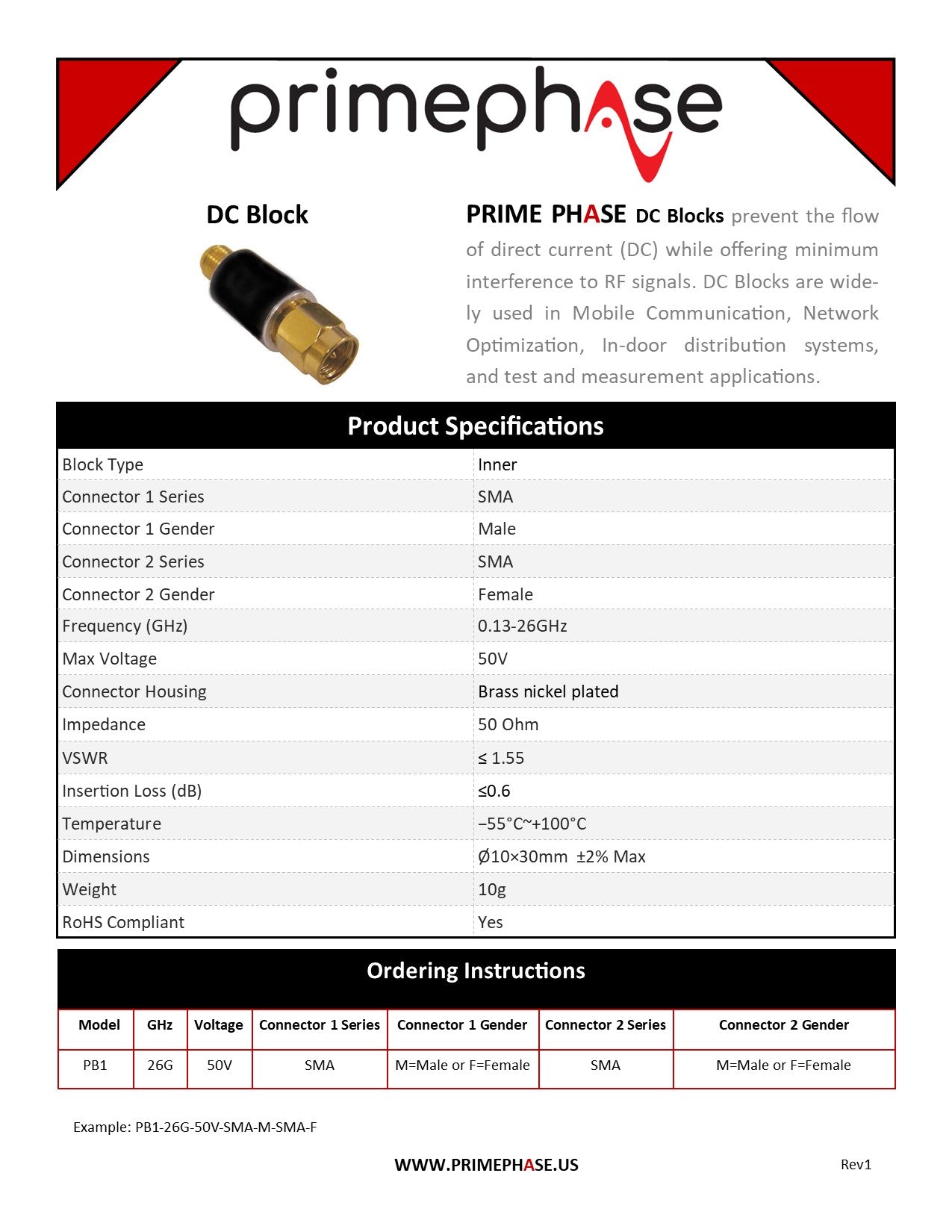

SKU: PB1-26G-50V-SMA-M-SMA-F
Block Type Inner
Connector A: SMA Male
Connector B: SMA Female
Frequency (GHz) 0.13-26GHz
Max Voltage 50V
Connector Housing Brass nickel plated
Impedance 50 Ohm
VSWR ≤ 1.55
Insertion Loss (dB) ≤0.6dB
Temperature −55°C~+100°C
Dimensions Ø10×30mm ±3% Max
Weight 10g
RoHS Compliant Yes
Applications: Telecommunications, RF Test labs,
Comparable to SD3463, SD3235
Materials
Materials
Connectors are passivated stainless steel.
Aluminum Heatsink
Contacts are gold plated brass
RoHS and REACH compliant
Shipping & Returns
Shipping & Returns
14 day no questions asked return policy.
Free shipping in US for orders over $50
Dimensions and weight
Dimensions and weight
Ø15.8 x 28mm
~15 g
