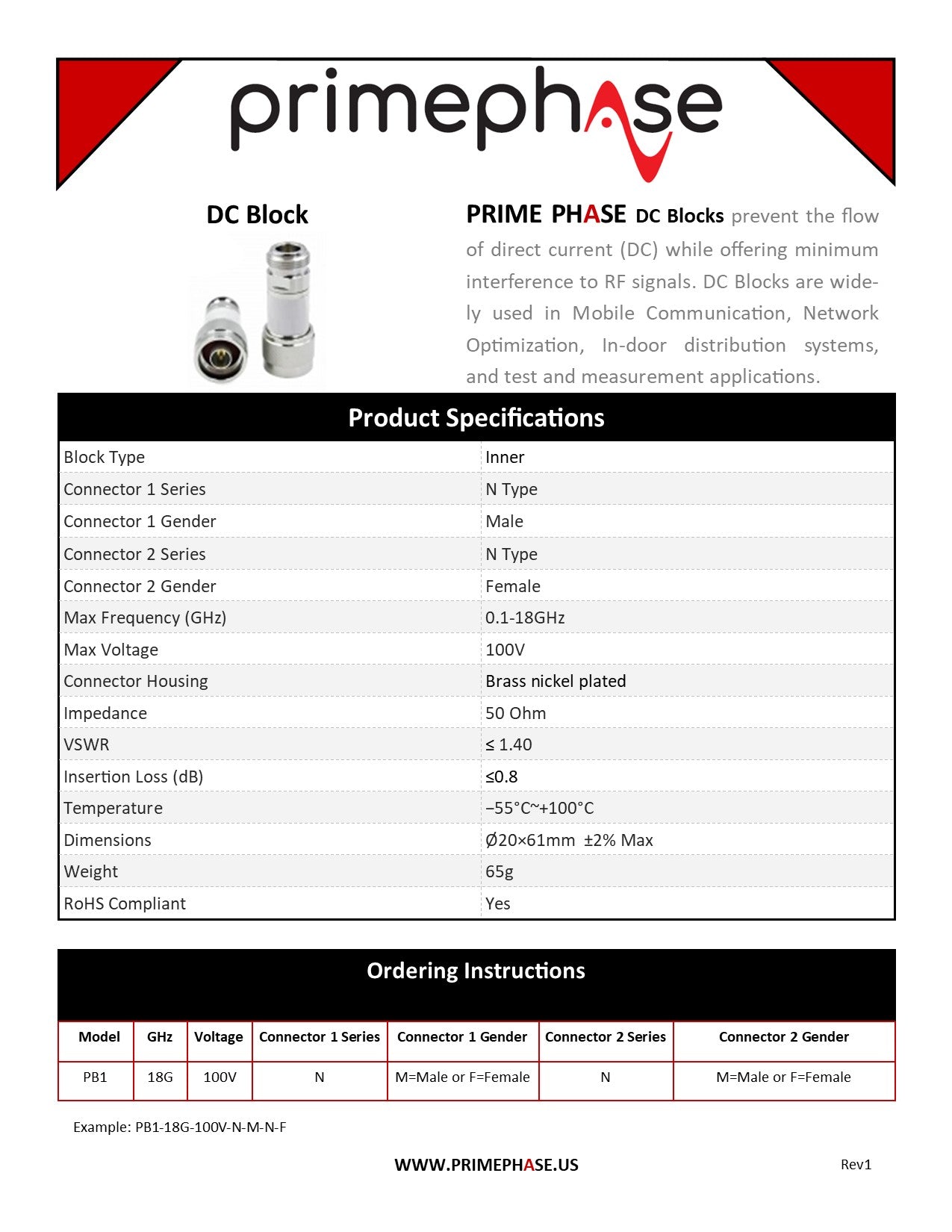

DC Block N Male-Female, 0.1-18GHz, 100V

DC Block N Male-Female, 0.1-18GHz, 100V, Bi-Directional

SKU: PB1-18G-100V-N-M-N-F

Block Type: Inner

Connector A: N Male

Connector B: N Female

Frequency (GHz) 0.1-18GHz

Max Voltage 100V

Connector Housing Brass nickel plated

Impedance 50 Ohm

VSWR ≤ 1.40

Insertion Loss (dB) ≤0.8dB

Temperature −55°C~+100°C

Dimensions Ø20×61mm  ±2% Max

Weight  65g

RoHS Compliant Yes

Applications: Telecommunications, RF Test labs

Comparable to PE8213, SD3074
